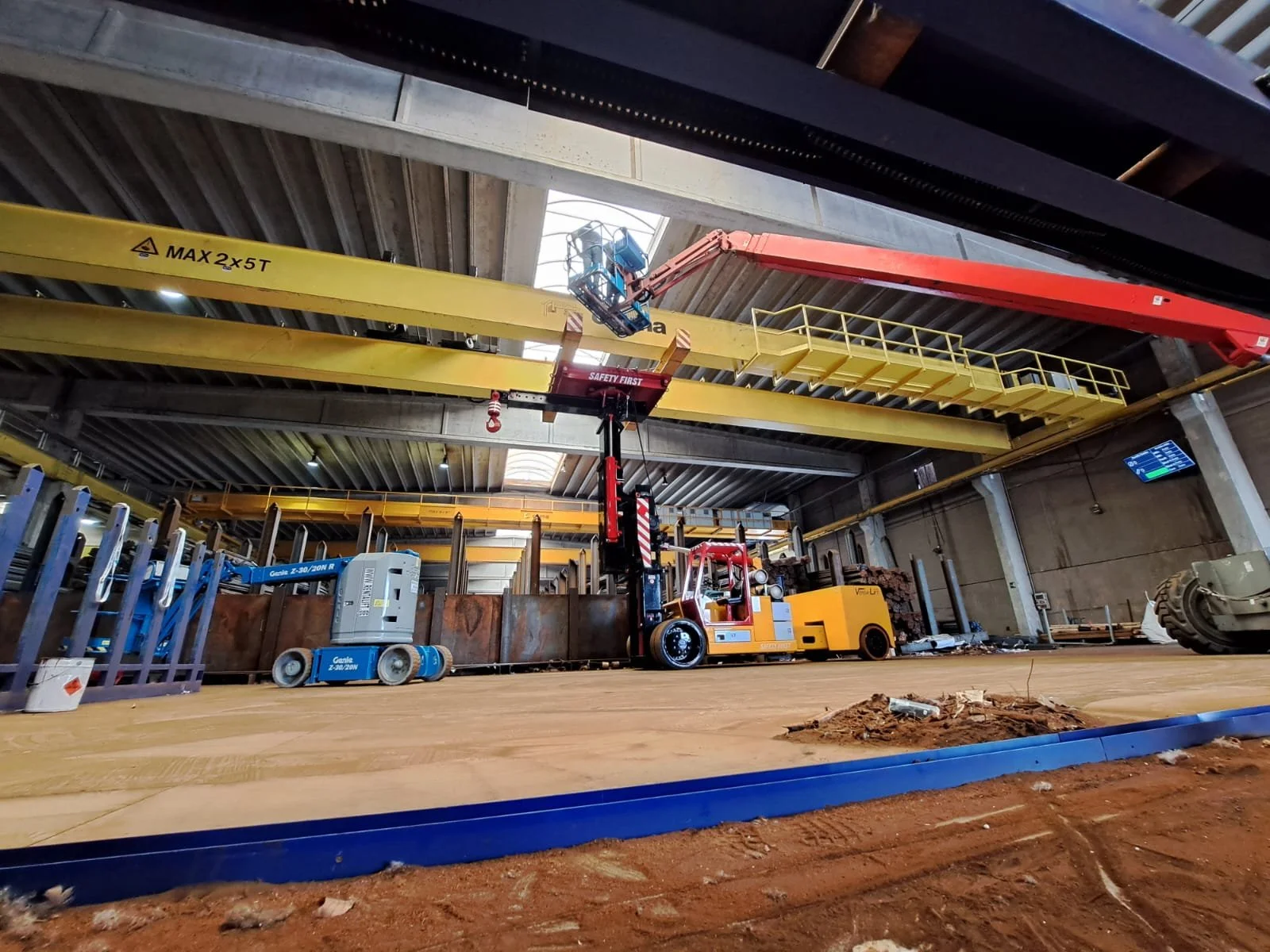

60/80 Versa-Lift
The 60/80 Versa-Lift boasts an impressive lifting capacity of 60,000 pounds in its fully retracted state and an extraordinary 80,000 pounds with extended counterweights. Whether you're dealing with machinery, components, or other heavy loads, our solution ensures a seamless lifting experience.
We understand that every job site is unique and comes with its own set of challenges. Therefore, the Versa-Lift 60/80 incorporates several cutting-edge features to optimize efficiency and adaptability. Within minutes you can switch from picking a load from underneath with forks to picking it from above with the boom. The 60/80 has a very user-friendly design that includes an ergonomic control panel, enabling intuitive operation and control of the equipment.
4.3L GM Engine (LP or Dual Fuel Option
Load Sensing Pump
All-In-One Custom Manifold
Fully Sealed IP67 Electronic Controls and Components
Machine Override capability if levers or pedal fail
Lift Capacity Calculator
Features
Extendable Counterweight
Diagnostics capability on the display screen
Remote Control Capability (Optional)
Fork Positioning (Optional)
Side Shifting (Optional)
Custom forks available upon request
Capacity
Frame Retracted - 60,000 lbs.
Frame Extended - 80,000 lbs.
Grade
31% Grade Empty
15% Grade Loaded
Tires
Drive Tire - 36” x 12” x 30” Press On
Drive Tire - 36” x 10” x 30” Press On
Steer Tire - 28" X 12" X 22" Press On
Tilt
10 Degrees Forward
7 Degrees Back
Weight
Chassis - 37,600 lbs.
Removable Counterweights - 30,000 lbs.
Boom - 9,000 lbs.
Forks - 3,400 lbs.
Total Gross - 80,000 lbs.
